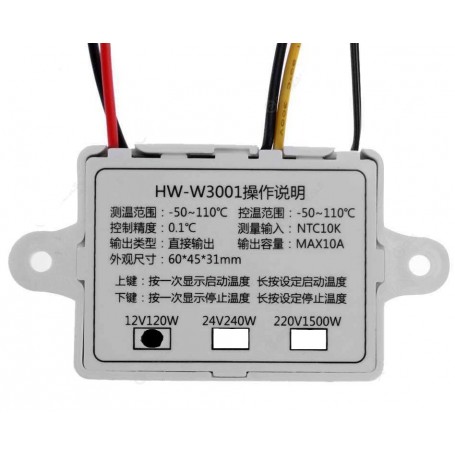

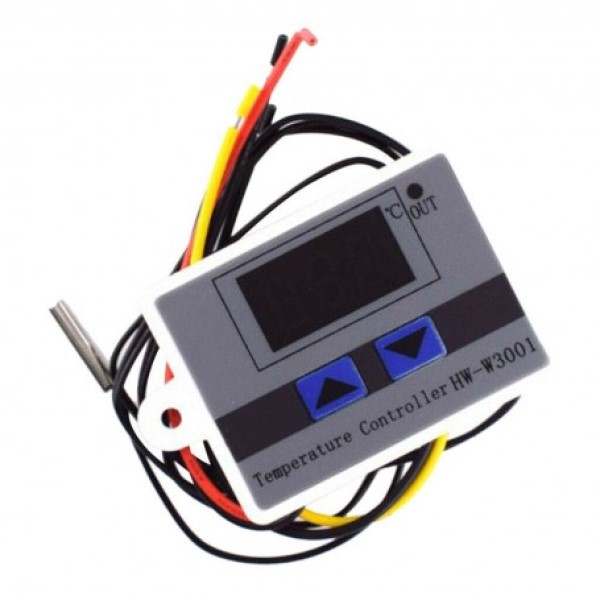

ترموستات 12VDC دیجیتال SHY-HW-W3001

مناسب برای برای تنظیم درجه حرارت مایعات، گازها و جامدات در دستگاههای گرم یا سردساز.

Temperature measurement range: -50℃-110℃
Temperature control range: -50℃-110℃
Accuracy of temperature measurement: +-0.2℃
Temperature Control Accuracy: +-0.1℃

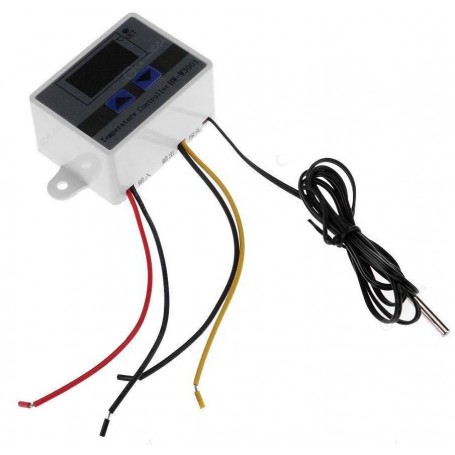

Input measurement: NTC 10KL = 1m waterproof probe
Input power supply: 12V
Output power: 120W
Output type: direct output
Output capacity: maximum 10A

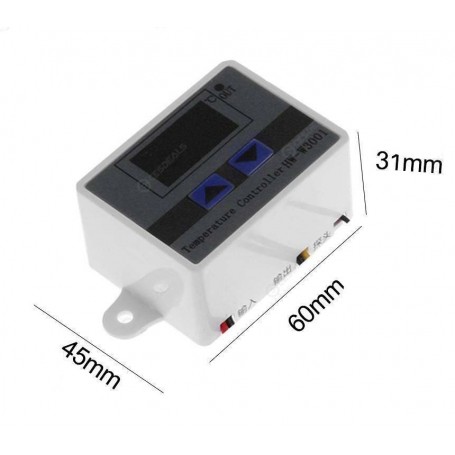

Appearance size: 60mm*45mm*31mm/2.36*1.77*1.22''
Packing weight: 51g

Applications

1. Setting the starting temperature: Press the button once to display the starting temperature. Press the button for about 3 seconds for a long time. The number of starting temperature will flicker. The required temperature can be set by the button up and down.
2. Setting the stop temperature: Press the key once to display the stop temperature. Press the key for about 3 seconds for a long time. The stop temperature number will flicker. The required temperature can be set by the up and down keys.
Heating mode:
1. Setting essentials: Start-up temperature < stop temperature (the program automatically judges working mode as a heating mode).
2. Settings:
Press the up button for a long time, after flicker, and set the start temperature by the upper and lower keys.
Press the down button for a long time, after flicker, and set the stop temperature by the upper and lower keys.
How to set it up:
1. Determine the working mode as heating mode, starting temperature < stopping temperature.
2. Press the up key button for a long time. When the temperature value flickers, press the upper and lower buttons to adjust the temperature. The starting temperature is 41°C.
3. Press the down key button long. When the temperature value flickers, the upper and lower keys are pressed to adjust the temperature, and the stop temperature is 51°C.
Refrigeration mode:
1. Setting essentials: Start-up temperature > stop temperature (the program automatically judges the working mode as refrigeration mode)
2. Settings:
Press the up button for a long time, after flicker, and set the start temperature by the upper and lower keys.
Press the down button for a long time, after flicker, and set the stop temperature by the upper and lower keys.
Use cases:
Control cabinet radiator, heat dissipation to 24°C stop, temperature rise to 32°C again start radiator.
How to set it up:
1. Determine the working mode as a refrigeration mode. Start temperature > stop temperature.
2. Press the up key button for a long time. When the temperature flickers, press the upper and lower buttons to adjust the temperature. The start-up temperature is 32 °C.
3. Press the down key button long. When the temperature flickers, press the upper and lower keys to adjust the temperature, and the starting temperature is 24 °C.
